YBX3 series
YBX3 series

YBX3 series

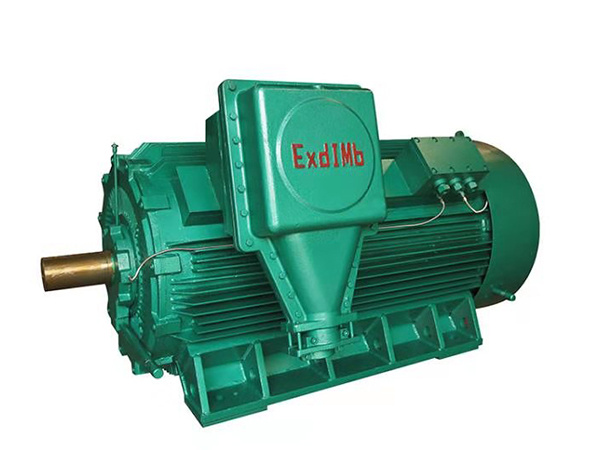

YBX3 series motor is designed for use in underground coal mine.

Classification:

YB3 high-voltage explosion-proof three-phase asynchronous motor

Recommend
Message

YBX3 series motor is designed for use in underground coal mine. The motor shell is welded from steel plate. The stator winding is consisted of class H insulating material and adopted VPI technique, the end of winding is fixed and binded reliably and also equipped with moisture-proof heating belt. The cage rotor adopts advanced cast aluminum process or copper bar, and has been balanced and calibrated to ensure smooth and reliable operation of the motor. The main junction box is right above the motor (viewed from the shaft extension end), or can be placed on the right or left side based on user requirements. Optional stator winding temperature measuring device, bearing temperature measuring device and other devices are also available for field observation and remote monitoring to ensure the safety of operation. This series motor is characterized by good insulation, high mechanic strength, strong moisture resistance and long service life.



Keywords: Fenyi grand, motor, specialization, safety
